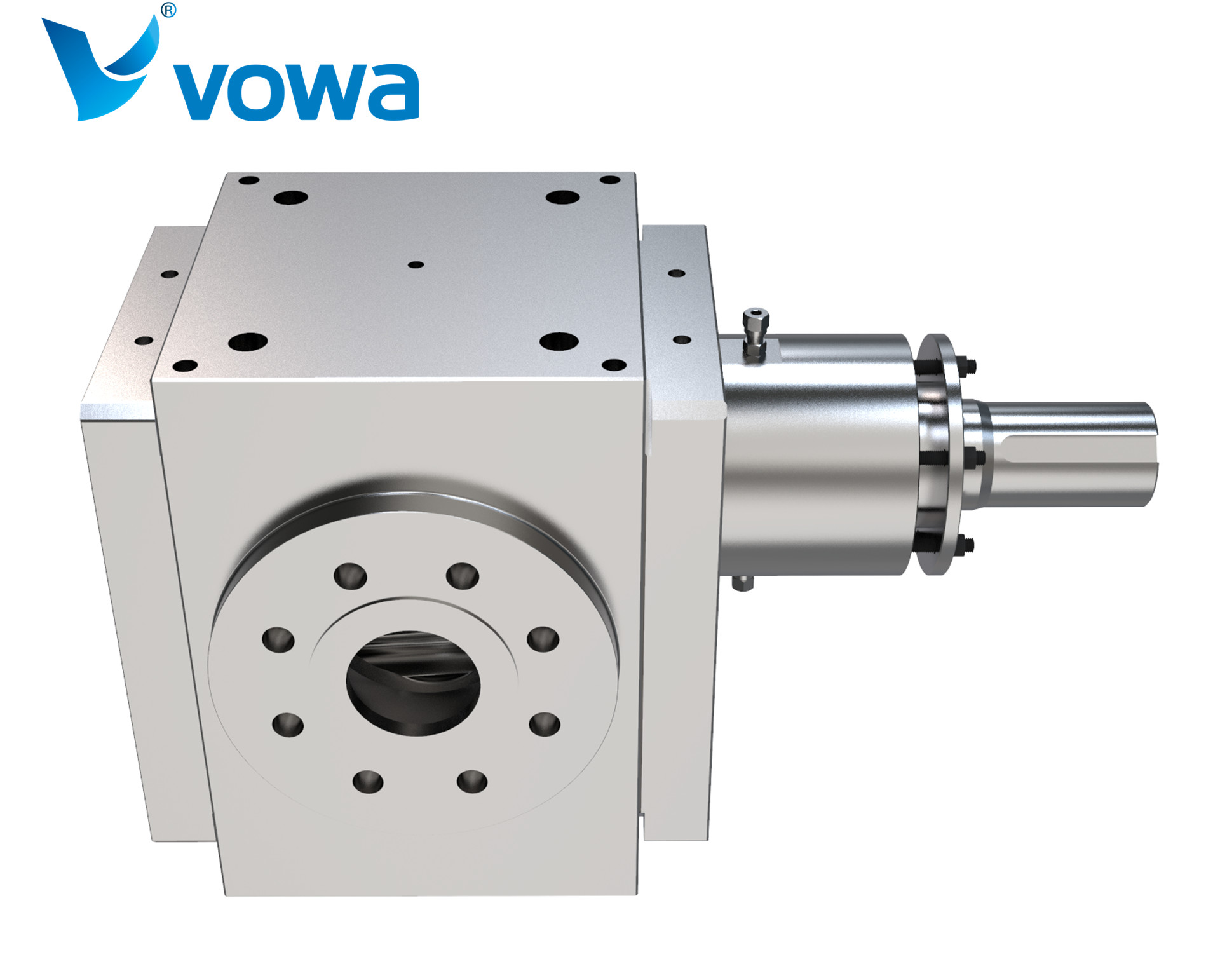

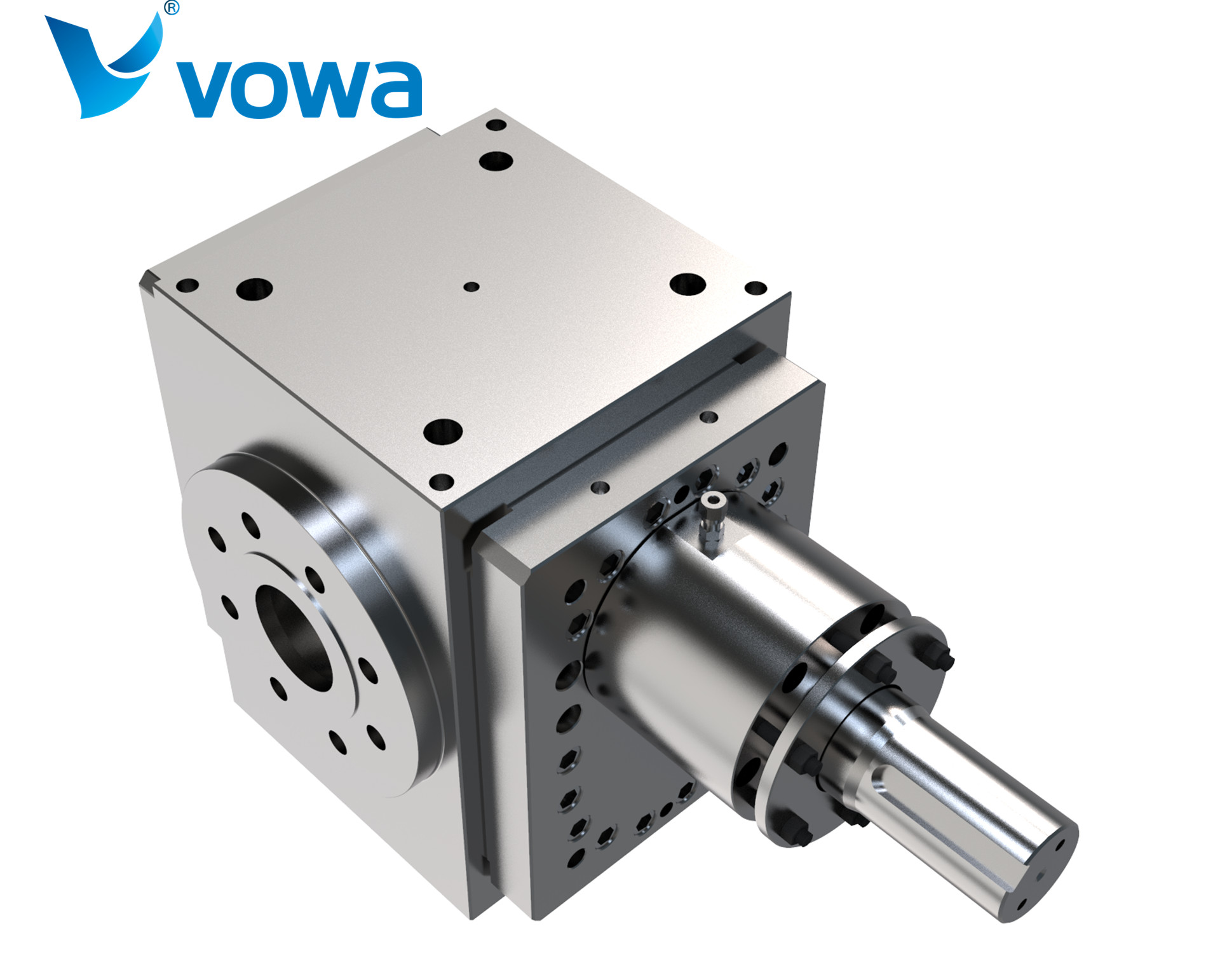

EHS series melt gear pump
EHS series melt gear pumps are especially suitable for the reactive transportation and pressurization of high-temperature and high-viscosity polymer melts that require high output pressure, such as resin, chemical fiber and other industries. They are generally installed in the melt pipeline and used as a booster pump; It can be installed in the extruder system that needs heating medium to be used as a metering pump. This series of melt gear pumps have a certain self-priming performance, and can be used for conveying and pressurizing polymer materials under lower vacuum suction conditions.


The main materials that can be conveyed by the melt gear pump are:
Polymer melt
PET PBT PTT
PA6 PA66 PA12
PE LDPE LLDPE HDPE HMWPE
PP EVA PB
PB PS HIPS ABS SAN
PC PEK PMMA POM
TPU PLA PBS


Other stock solutions, solutions, glues, oligomers, prepolymers, etc. in the polymer material industry;
It can also be used to transport hot melt adhesives, asphalt, paints, adhesives, pharmaceuticals, food, grease, fuels, oils, dyes, coatings, lubricants, polyols and other materials that do not contain particulate impurities.


Technical data:
Viscosity 130000Pa•s 1,00030,000,000cP
Suction side pressure : (-0.00-0.03MPa)~16MPa
Discharge side pressure 035MPa
Differential pressure 25MPa
Temperature ≤350℃
Heating Fully Jacketed
HT medium pressure ≤1.6MPa


Installation method
The EHS series melt gear pump is generally installed in the melt pipeline at the bottom of the reactor and used as a booster pump or a metering pump. It is driven by a motor + reducer + universal coupling. The melt gear pump is a positive displacement forced delivery pump. , The output flow of the pump can be adjusted by adjusting the speed of the pump. Frequency conversion speed regulation is recommended, which can realize the nearly linear flow output of the gear pump.



Main structure of gear pump:
Rotor type: helical or spur gear
Heating method: Heat medium heating


Sealing structure:
■ Dynamic melt seal + packing seal
■ Mechanical seal
■ Dynamic seal with cooling melt
■ High temperature resistant packing seal


Main structural materials of melt gear pump:
Pump casing: stainless steel/alloy steel/corrosion-resistant alloy
Gear: Nitrided steel/tool steel/stainless steel + coating/corrosion resistant alloy
Bearing: tool steel/copper alloy/stainless steel + coating/corrosion resistant alloy


Pump size and Technical data

Model

cc/r

Inlet
pres.
Mpa

Outlet
pres.
MPa

Max. flow rate     m3/h

Temp









Low
viscosity material

Medium
viscosity material

High
viscosity material

Ultra high
viscosity
material











50Pa.s

50200Pa.s

2002000Pa.s

2000Pa.s



EHS-5

5

Vacuum

-0.0516.0

≤35.0

0.041

0.027

0.019

0.012

≤350℃

EHS-10

10





0.081

0.054

0.038

0.024



EHS-20

20



0.162

0.108

0.076

0.049





EHS-32

32

0.259

0.173

0.121

0.078



EHS-50

50

0.405

0.270

0.189

0.122



EHS-75

75

0.527

0.365

0.243

0.162



EHS-100

100

0.702

0.486

0.324

0.216



EHS-160

160

1.123

0.778

0.518

0.346



EHS-200

200

1.404

0.972

0.648

0.432



EHS-250

250

1.620

1.080

0.675

0.473



EHS-355

355

2.3

1.5

0.9

0.7



EHS-500

500

3.2

2.2

1.2

0.9



EHS-750

750

4.9

3.2

1.8

1.4



EHS-1000

1000

5.4

3.8

2.2

1.9



EHS-1200

1200

6.5

4.5

2.6

2.3



EHS-1600

1600

8.6

6.0

3.5

3.0



EHS-2000

2000

10.8

7.6

4.3

3.8



EHS-2500

2500

10.8

8.1

4.7

4.1



EHS-3150

3150

13.6

10.2

6.0

5.1



EHS-4000

4000

13.0

10.8

7.6

6.5



EHS-6300

6300

20

17

10

9



EHS-8000

8000

22

17

13

12



EHS-9000

9000

24

19

15

13



EHS-12000

12000

32

26

18

16



EHS-18000

18000

49

39

27

24



EHS-25000

25000

68

54

38

34



EHS-38000

38000

103

82

57

51



EHS-54000

54000

146

117

82

73



EHS-80000

80000

216

173

121

108
