HS-T Series Polymer Melt Gear Pump







Booster Pump—— High-pressureFull Jacket

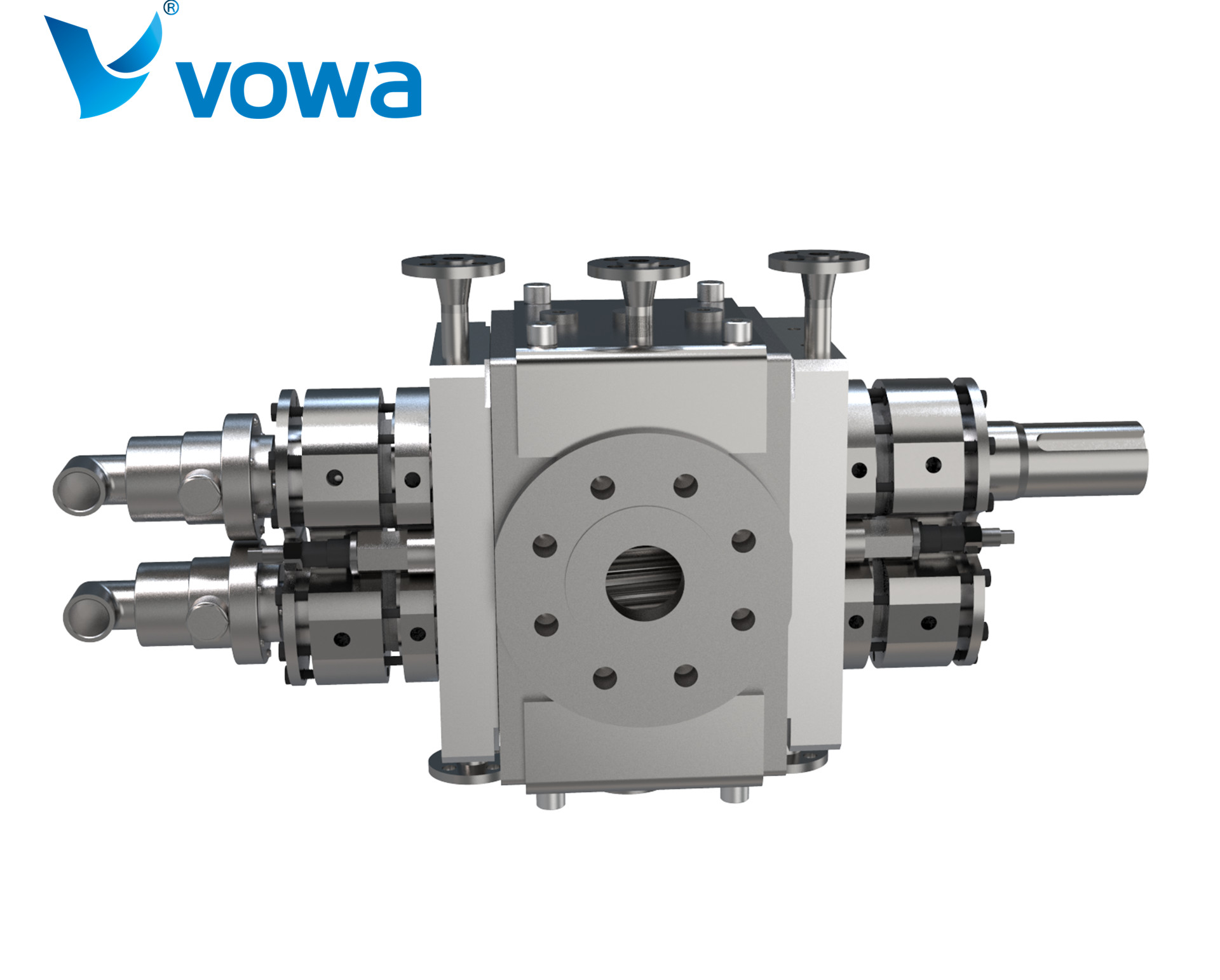

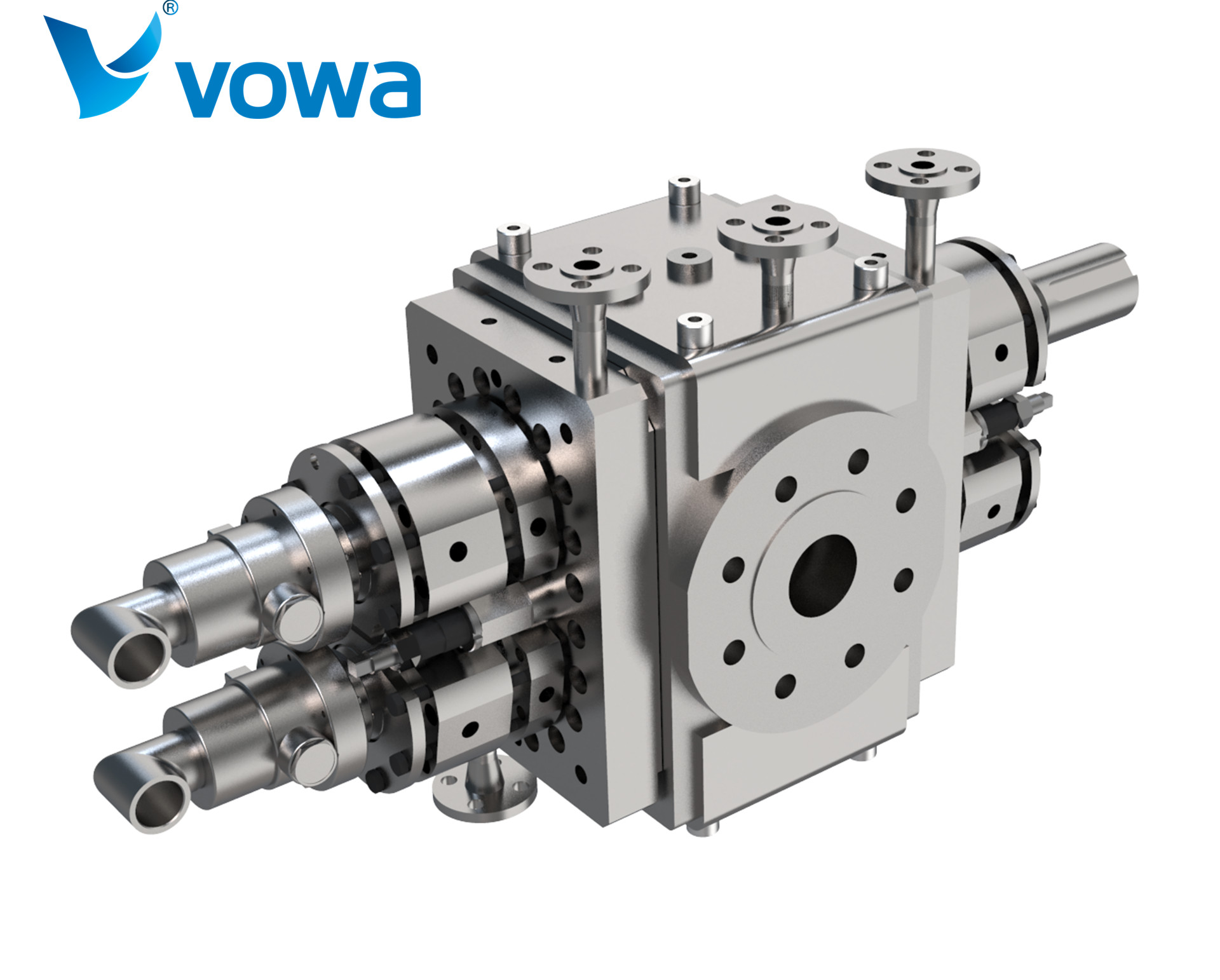

HS-T series melt gear pump
HS-T series melt gear pumps are especially suitable for reactive transportation and pressurization of high-temperature and high-viscosity polymer melts that require high output pressure, such as resin, chemical fiber and other industries. They are generally installed in melt pipelines and used as booster pumps. ; It can also be installed in the extruder system that needs heating medium to be used as a metering pump. This series of melt gear pumps have a certain self-priming performance, and can be used for conveying and pressurizing polymer materials under lower vacuum suction conditions.


The main materials that can be conveyed by the melt gear pump are:
Polymer melt
PET PBT PTT
PA6 PA66 PA12
PE LDPE LLDPE HDPE HMWPE
PP EVA PB
PB PS HIPS ABS SAN
PC PEK PMMA POM
TPU PLA PBS


Other stock solutions, solutions, glues, oligomers, prepolymers, etc. in the polymer material industry;
It can also be used to transport hot melt adhesives, asphalt, paints, adhesives, pharmaceuticals, food, grease, fuels, oils, dyes, coatings, lubricants, polyols and other materials that do not contain particulate impurities.


Technical data:
Viscosity 130000Pa•s 1,00030,000,000cP
Suction side pressure :(-0.00-0.03MPa)~16MPa
Discharge side pressure 035MPa
Differential pressure 25MPa
Temperature ≤350℃
Heating Fully Jacketed
HT medium pressure ≤1.6MPa


Installation method
HS-T series melt gear pump is generally installed in the melt pipeline at the bottom of the reactor and used as a booster pump or metering pump. It is driven by a motor + reducer + universal coupling. The melt gear pump is a positive displacement compulsory For the delivery pump, the output flow of the pump can be adjusted by adjusting the speed of the pump. Frequency conversion speed regulation is recommended, which can achieve the nearly linear flow output of the gear pump.



Main structure of gear pump:
Rotor type: helical or spur gear
Heating method: Heat medium heating


Sealing structure:
■ Dynamic melt seal + packing seal
■ Mechanical seal
■ Dynamic seal with cooling melt
■ High temperature resistant packing seal


Main structural materials of melt gear pump:
Pump casing: stainless steel/alloy steel/corrosion-resistant alloy
Gear: Nitrided steel/tool steel/stainless steel + coating/corrosion resistant alloy
Bearing: tool steel/copper alloy/stainless steel + coating/corrosion resistant alloy


Pump size and Technical data



















Model

cc/r

Inlet
pres.
Mpa

Outlet
pres.
MPa

  Max. flow rate     m3/h

Temp

Low
viscosity material

Medium
viscosity material

High
viscosity material

Ultra high
viscosity
material

50Pa.s

50200Pa.s

2002000Pa.s

2000Pa.s

HS-5-T

5

Vacuum

-0.0516.0

≤35.0

0.041

0.027

0.019

0.012

≤350℃

HS-10-T

10

0.081

0.054

0.038

0.024

HS-20-T

20

0.162

0.108

0.076

0.049

HS-32-T

32

0.259

0.173

0.121

0.078

HS-50-T

50

0.405

0.270

0.189

0.122

HS-75-T

75

0.527

0.365

0.243

0.162

HS-100-T

100

0.702

0.486

0.324

0.216

HS-160-T

160

1.123

0.778

0.518

0.346

HS-200-T

200

1.404

0.972

0.648

0.432

HS-250-T

250

1.620

1.080

0.675

0.473

HS-355-T

355

2.3

1.5

0.9

0.7

HS-500-T

500

3.2

2.2

1.2

0.9

HS-750-T

750

4.9

3.2

1.8

1.4

HS-1000-T

1000

5.4

3.8

2.2

1.9

HS-1200-T

1200

6.5

4.5

2.6

2.3

HS-1600-T

1600

8.6

6.0

3.5

3.0

HS-2000-T

2000

10.8

7.6

4.3

3.8

HS-2500-T

2500

10.8

8.1

4.7

4.1

HS-3150-T

3150

13.6

10.2

6.0

5.1

HS-4000-T

4000

13.0

10.8

7.6

6.5

HS-6300-T

6300

20

17

10

9

HS-8000-T

8000

22

17

13

12

HS-9000-T

9000

24

19

15

13

HS-12000-T

12000

32

26

18

16

HS-18000-T

18000

49

39

27

24

HS-25000-T

25000

68

54

38

34

HS-38000-T

38000

103

82

57

51

HS-54000-T

54000

146

117

82

73

HS-80000-T

80000

216

173

121

108

Please consult the manufacturer for larger or smaller specifications
